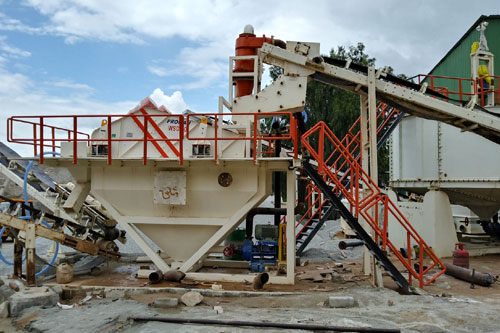

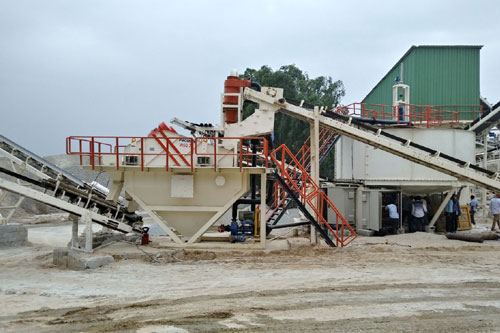

We manufacture sand washing unit with WSG range of Dual Sand

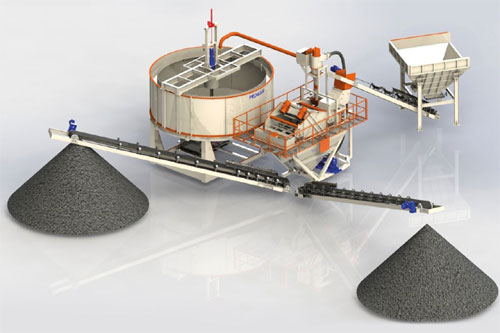

Separation system with capacity range of 40-200TPH . The WSG is designed to combine ‘’feeding, washing, grading,
dewatering, water recycling and stockpiling’’ all in one system.
HIGHLIGHTS - WSG
- Washed sand
- Compact design
- Cutting fines at desired level
- Maximum water recovery
- Low maintenance
- Trouble free operation
WSG MODELS
| Model |
Slurry Flow (CUM/h) |
Capacity (TPH) |
Pump Size |
Pump Power (kW) |
Cyclone Dia (mm) |

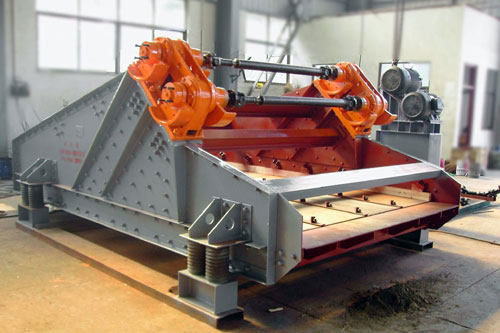

Dewatering Screen Size (m) |
| WSG-40 |
100 |
40 |
4” |
15 |
400 |
1.2X2.7 |
| WSG-70 |
180 |
70 |
6” |
18.5 |
500 |
1.5X3.0 |
| WSG-120 |
280 |
120 |
8” |
30 |
700 |
1.8X3.3 |
| WSG-170 |
340 |
170 |
8” |
2X30 |
800 |
2*1.8X3.3 |
| WSG-200 |
600 |
200 |
10” |
2X30 |
2X800 |
2*1.8X3.3 |
| *PROMAN strives for continuous development; all data
are subjected to change with prior notice |
HIGHLIGHTS - THICKENER
- To recover clean water from sand washing process.
- Remove Fine slurry by high density pump.
- Very high percentage of solids in final slurry.
- Scrapper lifting system.
- Flocculent Dosifier.
THICKENER MODELS
| TYPE |
Diameter (m) |
Feed flow (m3/h) |
Scraper Power (kW) |
Pump Power (kW) |
| TC-06 |
6 |
150 |
1.1 |
18 |
| TC-08 |
8 |
150 |
1.5 |
22 |
| TC-10 |
10 |
300 |
2.2 |
30 |
| TC-12 |
12 |
660 |
2.2 |
37 |
| TC-14 |
14 |
850 |
3 |
45 |
| *PROMAN strives for continuous development; all data
are subjected to change with prior notice |
